flexing POM food grade modular belt conveyors
Item specifics
- Color
- Sliver + Green
- Warranty
- 1 year
- Certification
- SGS, ISO, CE
- Package
- Packed by strong wooden case
Review
Description
Product Description
flexible conveyor systems
automation conveyor
Feature
1. Flexlink Chain types: XS44, XL63, XM83, XH103
| Chain Type | Width |
| XS 44 | 44 mm |
| XL 63 | 63 mm |
| XM 83 | 83 mm |
| XL 103 | 103 mm |
2. Flexlink Chain Material: Dupont Delrin POM 4520p ( 500p / 100p )
3. Conveyor Material: SS 304 driven head, aluminium profile bar body
4. Min / Max Length: 1m / 600m.
5.Max Length: 60m/min ( different product is different )
6.Tensile Strength: 4000N ( different product is different )
7. Working temperature: -20 degree centigrade to 60 degree centigrade
8. Advantages:
1) Compact and easy to integrate, low conveyor section height.
2) Gentle product handling, smooth chain, gentle to your products.
3) Clean design.
4) Compact and efficient drive units.
Conveyor design note:
Speed: adjustable
All our conveyor lines are designed as customers actual requirement.
The following information we need from you before our design project and quotation.
1. Your layout
2. Your information about the transmission items. (like the maximum and minimum weight and size)
3. Your Capacity and requirement speed.
4. Material requirement
5. Detail size for the conveyor line
6. Other required specail function for the conveyor line
7. Your requirement on motor
etc.
You can also choose different color as your wish.

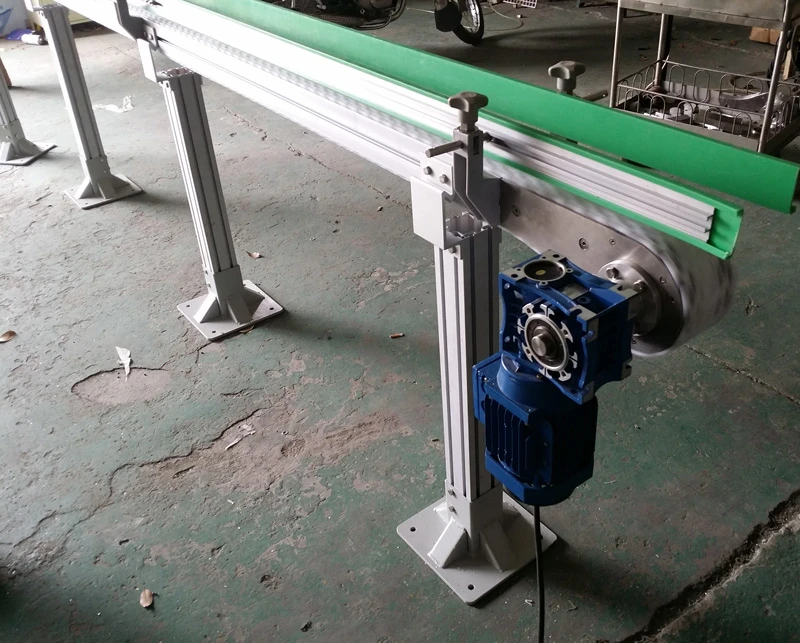

Product Picture
